Sending e-mails using IIS SMTP Server on Windows Azure

If you want to send emails from a Windows Azure Role, there’s the possibility to use the built-in SMTP Server of IIS 6.0. Here is a guide how to use startup scripts and PowerShell commands to set up a SMTP server in the cloud.

Before you start make sure that you’re running a Windows 2008 Server R2 in the cloud by setting the osFamily Attribute to osFamily=”2” in the ServiceConfiguration.cscfg file.

Setup the SMTP

Here is a guide that shows how to set up the SMTP server manually. Those are the same steps we’re going to do here using scripts. It helped me to understand what’s necessary to do. Just deploy any Azure Project to the Cloud, RDP in, install the SMTP-Server feature and do the steps described in that guide.

But now to the automated setup scripts:

1. Create a new startup task in the ServiceDefinition.csdef

<Startup>
  <Task commandLine="Startup.cmd" executionContext="elevated" taskType="simple" />
</Startup>

2. The startup file first needs to install the SMTP-Server feature automatically. To gain this it uses the PowerShell 2.0. After that it calls a VBScript that configures the SMTP-Server.

The Startup.cmd:

powershell -command "Set-ExecutionPolicy Unrestricted"
powershell .\InstallSmtp.ps1
cscript ConfigSmtp.vbs

The InstallSmtp.ps1 PowerShell script:

Import-Module Servermanager
Add-WindowsFeature SMTP-Server

3. Now we need to create the VBScript that configures the SMTP server: We need to add all IP addresses that are allowed to send mails through this SMTP server to the grant list. Assuming only applications running on the same server are allowed to send emails we’re going to add 127.0.0.1 to that list.

The ConfigSmtp.vbs

Option Explicit
Dim smtpServer, relayIpList
' Get the default instance of the SMTP server
Set smtpServer = GetObject("IIS://localhost/smtpsvc/1")
' Get the IPList
Set relayIpList = smtpServer.Get("RelayIpList")
' Add localhost to that list
relayIpList.GrantByDefault = false
relayIpList.IpGrant = "127.0.0.1"
' Save changes
smtpServer.Put "RelayIpList",relayIpList
smtpServer.SetInfo

4. Deploy to the cloud

Use the SMTP from C# code

To use the local SMTP server from within your C# code use the following lines:

var client = new System.Net.Mail.SmtpClient("localhost");
client.Send("from@domain.tld",
            "to@domain.tld",
            "This is my subject",
            "Hello, this is a mail from the cloud!");

Don’t get blacklisted

Even Steve Marx recommended not to use the SMTP server feature on Windows Azure instances because they soon would be blacklisted. To avoid getting on a blacklist you could use a smart host to deliver your emails with.

If you want to use a smart host in your deployment, you need to extend the ConfigSmtp.vbs:

' set the outbound connector to a smart host
smtpServer.SmartHostType = 2
smtpServer.SmartHost = "smtp.mysmarthost.tld"
' use basic authentication
smtpServer.RouteAction = 264
smtpServer.RouteUserName = "myName"
smtpServer.RoutePassword = "myPassword"
' save changes
smtpServer.SetInfo

In this case I have been using the SMTP relay services offered by http://dyn.com which worked just fine. Depending on what service you’re about to use, the settings might differ.

References

• the IIS WMI documentation gives help when trying to find out what properties can be used in the VBScript:
  http://msdn.microsoft.com/en-us/library/ms525265(v=VS.90).aspx


• Here are some sample scripts for IIS
  http://www.thescriptlibrary.com/default.asp?Action=Browse&Level=Category2&ScriptLanguage=VBScript&Category1=IIS&Category2=IIS%206.0


• IIS Metabase Property Reference (here with the RouteAction enumeration)
  http://technet.microsoft.com/en-us/library/cc757175

Installing updates manually on Windows Azure

While trying to manually install the PowerShell 2.0 update on a Windows Azure Role I ran into the following error message:

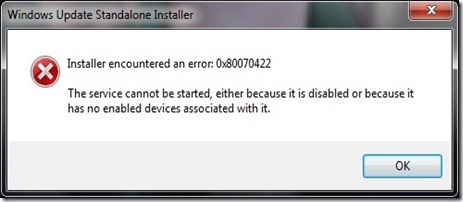

“Installer encountered an error: 0x80070422”

In order to solve this problem:

1. Open the Server Manager: Start > Right Click on “Computer” > Manage
2. Navigate to Configuration > Services
3. Enable the Background Intelligent Transfer Service  and start it
4. Enable the Windows Update Service and start it
5. Now you can manually install updates.

I Got this hint from: Came Too Far
